Precision You Can Depend On
In RF engineering, consistency defines performance. Even slight deviations in impedance, tuning, or component alignment can result in measurable performance loss. At AG Antenna, quality control isn’t a checkpoint in production; it is the foundation of our manufacturing philosophy.
Where others rely on batch sampling, we verify every antenna that leaves our production line. Each unit is individually tested and validated using Keysight’s P9372B Vector Network Analyzer (VNA), a gold standard in RF precision measurement. This isn’t a sponsored mention; it’s a statement of trust in the industry’s most reliable test instrumentation.
Setting the Standard: VNA Testing and RF Validation
A Vector Network Analyzer (VNA) is indispensable in antenna characterization and validation. For AG Antenna, it represents the definitive measure of performance and repeatability. Each test provides essential data on:
- S11 (Return Loss): Confirms efficient power radiation with minimal reflection back into the feed line.
- VSWR (Voltage Standing Wave Ratio): Quantifies mismatch to ensure optimal energy transfer between the antenna and its transmission line.
- Impedance and Bandwidth: Verifies that each antenna resonates precisely across its design frequencies with correct matching and radiation behavior.
Batch testing can overlook irregularities that compromise system integrity. A single mistuned antenna can degrade throughput, coverage, or system gain. By validating every antenna, AG Antenna ensures that every deployment performs exactly as engineered.

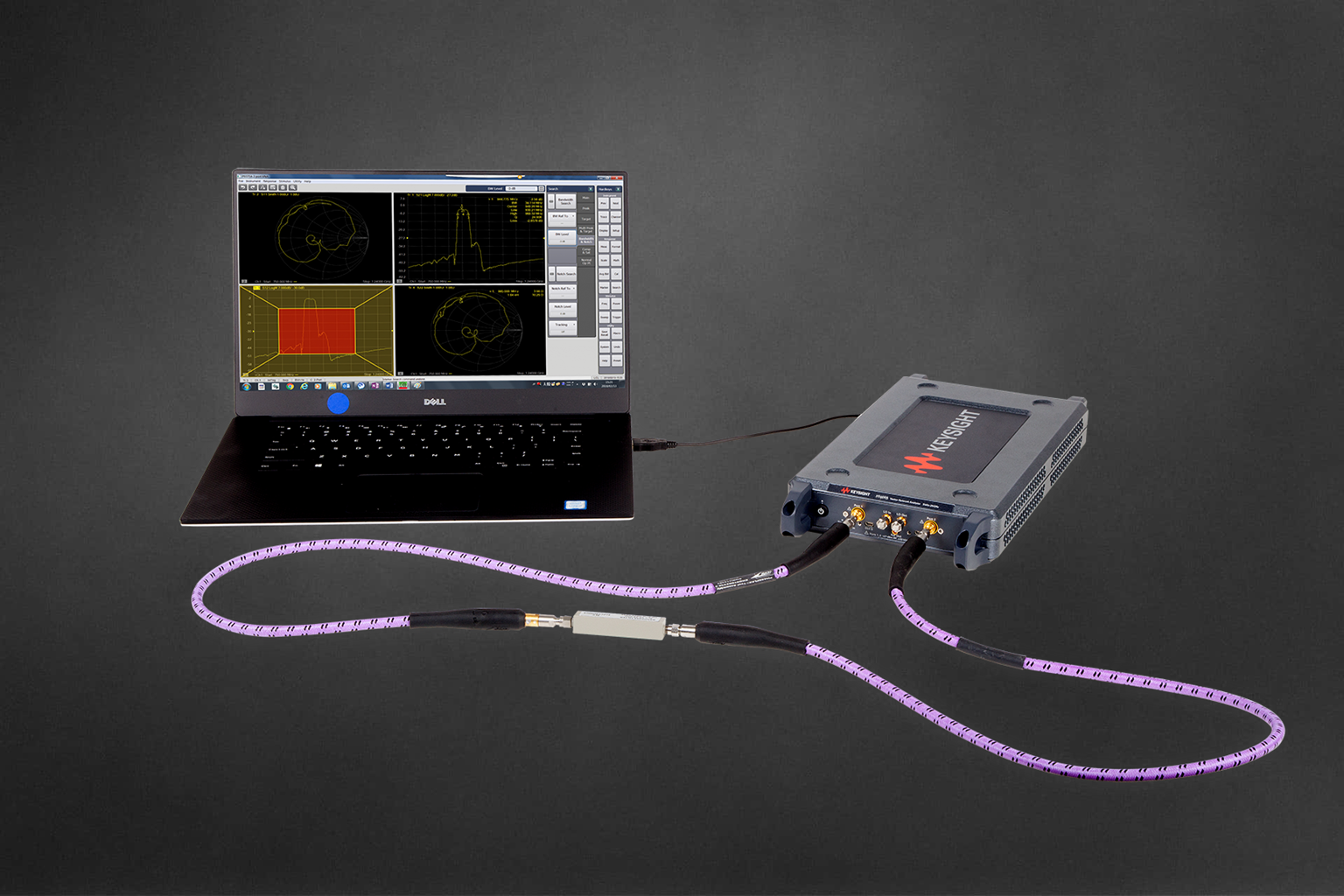

Inside the Lab: The Keysight P9372B Advantage
Keysight’s reputation for accuracy is unmatched, and the P9372B Streamline Series VNA exemplifies this reliability in a compact, production-optimized design.
Key performance attributes include:
- 2-Port Coverage (9 kHz–9 GHz): Perfect for modern wideband and multi-band antenna testing.
- High Dynamic Range (up to 115 dB): Enables precision measurement of both reflection and transmission parameters.
- Low Trace Noise (0.0015 dB rms at 10 kHz IFBW): Guarantees clean, stable, and repeatable test results.
- Compact USB Architecture: Streamlined integration into AG Antenna’s high-throughput production environment.
This combination of accuracy and portability allows AG Antenna to maintain laboratory-grade validation directly on the assembly floor.

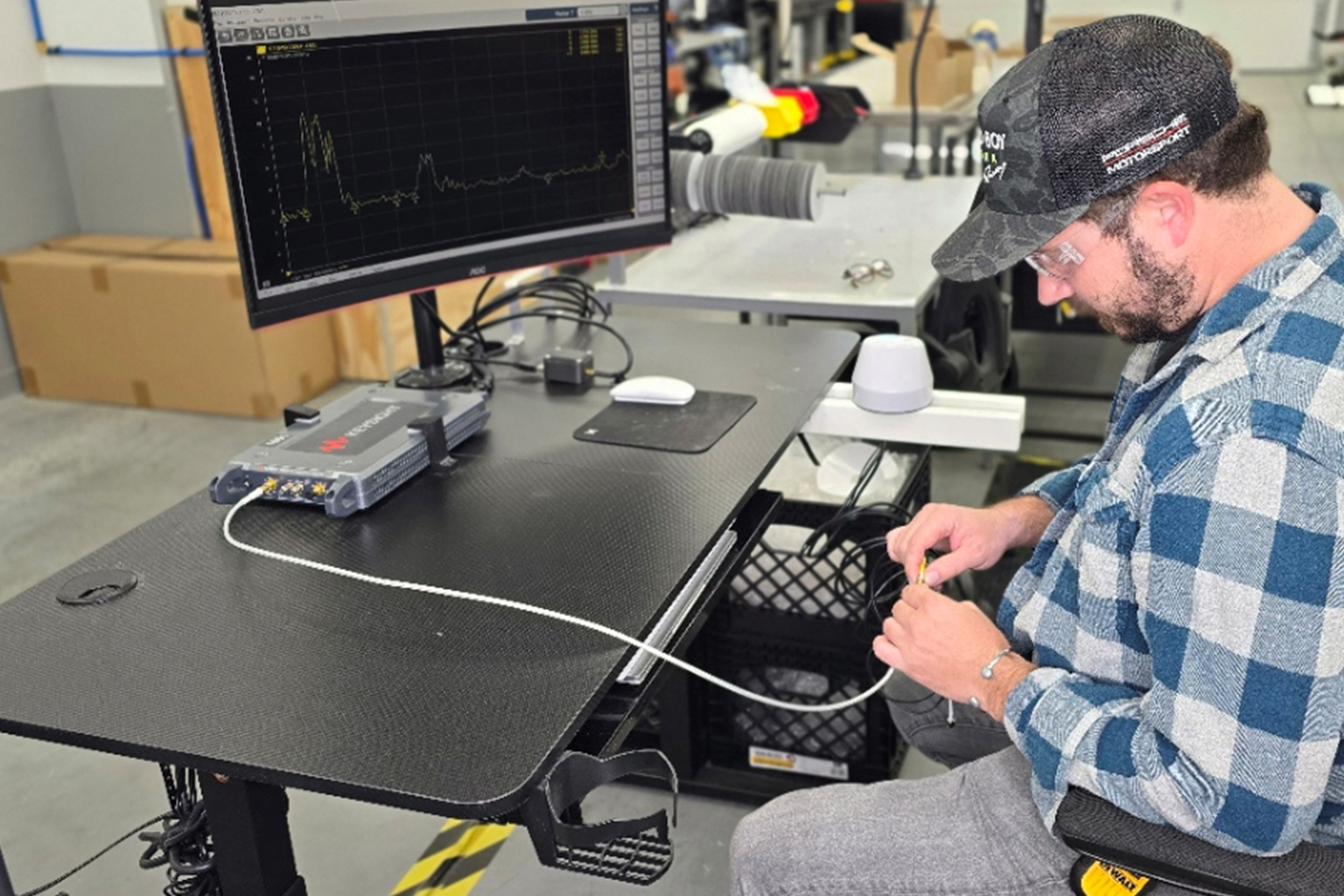

Our Quality Process: Precision from Start to Finish
Our quality control process was engineered to detect and correct even microscopic variances from design specifications:
- Post-Assembly Inspection – Each antenna is visually and structurally examined for mechanical precision and material integrity.
- Full VNA Sweep Testing – Comprehensive S-parameter measurement across all target frequency bands.
- Precision Re-Tuning – Any antenna that deviates from ideal resonance or impedance is re-tuned and revalidated.
- Final Certification – Each antenna must meet or exceed our standards for return loss, VSWR, and impedance before it earns the AG Antenna mark.
Every test cycle reinforces the same outcome: 100% performance verification, with no tolerance for compromise.
The Customer Advantage: Proven Performance in Every Unit
- Guaranteed Consistency: Each antenna meets identical RF specifications for flawless network performance.
- Field-Proven Reliability: Our low failure rate ensures confidence in critical and enterprise deployments.
- Enhanced ROI: Every unit is fully validated, delivering measurable value through dependable long-term operation.
- Future-Ready Design: Validation up to 9 GHz provides assurance of compatibility with 5G NR, Wi-Fi 6E/7, and next-generation technologies.
The Partnership of Precision: Keysight and AG Antenna
By integrating the Keysight P9372B VNA directly into our production line, AG Antenna closes the gap between design intent and field performance. Each antenna is a product of meticulous engineering, validated through world-class test instrumentation, and certified for uncompromising precision.
Bringing It All Together
When you partner with AG Antenna, you’re not purchasing a generic component; you’re investing in verified performance and measurable reliability. Every antenna we ship has been individually tested on industry-leading Keysight equipment, ensuring that what’s designed on paper performs exactly as expected in the field.
Explore the AG Antenna product line and see how true quality control translates into superior network performance at AG Antenna.
