In field environments where rugged reliability and compact integration are essential, the Semtech Sierra Wireless AirLink XR60 delivers enterprise-grade performance in an ultra-compact form factor. Designed to enable 5G, Wi-Fi 6, and GNSS connectivity in mission-aligned applications, like utility infrastructure, public safety fleets, and industrial edge networks, the XR60 is a small but powerful platform. And with the right antenna system from AG Antenna, it becomes a connectivity powerhouse.
At AG Antenna, we engineer and manufacture high-performance antenna solutions optimized to work seamlessly with leading routers like the XR60. Whether your deployment demands a low-profile, ultra-rugged, or space-saving antenna, our AG90, AG60, and AG45 Series deliver proven RF performance, physical durability, and flexible mounting options tailored to your application.
For Anterix 900MHz, LoRaWAN and other Private LTE Network fixed application requirements, AG also offers a Robust line of XPOL MIMO directional and MIMO high-gain omnidirectional multi-network XR60 antenna solutions in both Cellular and WiFi configurations
What Makes the AirLink XR60 Stand Out?

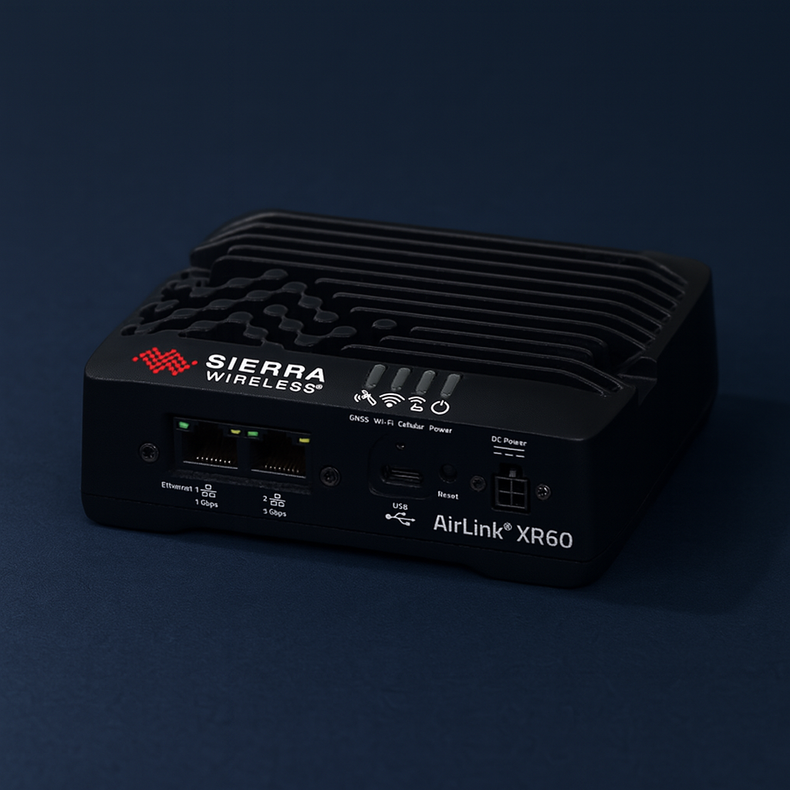

The XR60 is Semtech Sierra Wireless’ most compact rugged 5G router to date, one-third the size of its XR80 and XR90 counterparts. Despite its minimal footprint, it supports:
- Ruggedized operation with IP64 ingress protection and MIL-STD-810GH compliance
- 5G NR and LTE fallback across global frequency bands
- Dual SIM support with automatic failover
- AirLink OS, ALMS, and AirLink Complete integration for fleet and enterprise management
- 4x4 MIMO 5G multi-band cellular radios
- Optional 2x2 MIMO Wi-Fi 6
- Dual-band 40 channel GNSS (GPS)
- 1 Gbps RJ45 Ethernet with optional dual Ethernet
- Dual RS-232/475 serial ports
- USB 3.2 Gen 1 Type-C with power delivery and 5 Gbps LAN networking
- Carrier support: AT&T, FirstNet® Trusted, T-Mobile, T-Priority, Verizon, Telus, Southern Linc, CBRS, C-Band​Planned: Rogers, Bell, Telstra
- Public Safety: FirstNet® Trusted, T-Priority
The XR60 is offered in eight hardware variants, but antenna selection largely hinges on just two layouts:
- No Wi-Fi: 4 Cellular ports + 1 GPS
- With Wi-Fi: 4 Cellular ports + 2 Wi-Fi + 1 GPS
Understanding this port layout is essential when choosing between a 5-in-1 antenna (for cellular + GPS) and a 7-in-1 antenna (for cellular, Wi-Fi, and GPS).
Selecting the Right Antenna for the XR60
- AG90 Series – Low Profile, High Performance
The AG90 is built for discrete installations that don’t compromise on performance. Available in 3-in-1 to 9-in-1 configurations. The AG90 series supports:
-
- Up to 8x8 4G LTE CBRS 5G NR elements (617-960MHz / 1710-7000MHz)
- Up to 8x8 multi-band Wi-Fi 6/6E/7 elements (2.4GHz ~ 7GHz Concurrent) *for XR60 variants with Wi-Fi
- 1x multi-band GPS/GNSS element (1562MHz ~ 1612MHz)
- Private networks - Anterix, FirstNet®, CBRS, LoRaWAN, and Wi-Fi HaLow
- AG97 with 4x4 cellular, 2x2 Wi-Fi and GNSS for the Wi-Fi variant
- AG95 with 4x4 cellular and GNSS for the non Wi-Fi variant
Its durable, low-profile design makes it ideal for fleet and transit vehicles, emergency response units, and mobile workstations. The AG90 is engineered to exceed the standards of demanding enterprise level public safety applications.
- AG60 Series – Rugged and Reliable in Harsh Environments
For ultra-demanding deployments, the AG60 is your go-to antenna. This series is housed in a weatherproof, high impact ABS housing and is available in 3-in-1 to 11-in-1 models. The AG60 series supports:
-
- Up to 10x10 MIMO 4G LTE CBRS 5G NR elements (617-960MHz / 1710-7000MHz)
- Up to 10x10 MIMO multi-band Wi-Fi 6/6E/7 elements (2.4GHz ~ 7GHz Concurrent) *for XR60 variants with Wi-Fi
- 1x multi-band GPS/GNSS element (1562MHz ~ 1612MHz)
- Private networks - Anterix, FirstNet®, CBRS, LoRaWAN, and Wi-Fi HaLow
- AG67 with 4x4 cellular, 2x2 Wi-Fi and GNSS for the Wi-Fi variant
- AG65 with 4x4 cellular and GNSS for the non Wi-Fi variant
Ideal for XR60 installations in public safety, private LTE networks, utilities, mining, energy, and defense sectors, as well as harsh industrial and outdoor conditions. Its extended temperature tolerance and chemical resistance make it well-suited for pole-mounted, rooftop, or enclosure-based deployments.
- AG45 Series – Ultra Compact and Ultra Versatile
The AG45 series balances an ultra-compact form factor and performance, making it ideal for mobility applications, fleet retrofits, kiosks, and control cabinets. This series provides robust multi-element performance in a smaller footprint, available in 3-in-1 to 5-in-1 configurations. The AG45 Series supports:
-
- Up to 4x4 MIMO 4G LTE CBRS 5G NR elements (617-960MHz / 1710-7000MHz)
- Up to 4x4 MIMO multi-band Wi-Fi 6/6E elements (2.4GHz ~ 6GHz Concurrent) *for XR60 variants with Wi-Fi
- 1x multi-band GPS/GNSS element (1562MHz ~ 1612MHz)
- Private networks - Anterix, FirstNet®, CBRS, LoRaWAN, and Wi-Fi HaLow
- AG45 with 4x4 cellular and GNSS for the non Wi-Fi variant
The AG45 offers an unparalleled balance of compact size and performance. When space is a factor for your deployment, look no further than the AG45 series.
Real-World Use Cases
Public Safety Fleets
Deploy the XR60 with the AG97 7-in-1 or the AG67 7-in-1 on patrol vehicles or mobile command trailers to ensure full-spectrum wireless access, GPS tracking, and Wi-Fi backhaul for bodycams and laptops.
Industrial Control Panels
Pair the AG95 5-in-1 or the AG65 5-in-1 with an XR60 (Cellular + GPS only) inside ruggedized electrical cabinets to provide field-grade cellular connectivity with enhanced MIMO performance.
Traffic Systems & Smart Infrastructure
Use the AG45 5-in-1 in compact roadside cabinets where the XR60 powers edge compute or surveillance systems—perfect for space-constrained municipal deployments.
Bringing It All Together
The AirLink XR60 is a compact yet high-performance 5G platform, and it requires an antenna solution engineered to match. Whether your configuration demands a 5-in-1 or 7-in-1 antenna, AG Antenna’s AG90, AG60, and AG45 Series deliver ruggedized, RF-optimized, and application-tuned solutions.
Don’t let antenna bottlenecks hinder your XR60 deployment. With AG Antenna, you get more than just hardware, you get the confidence of tested performance, proven durability, and field-ready integration.
Explore the full lineup at AGAntenna.com and find the right fit for your XR60 deployment.
